Specifically designed to allow bidirectional control and monitoring of all parameters and functionalities of your building automation projects
This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features. The BTL mark ensures 100% compatibility and, at the same time, guarantees seamless integration with any BACnet device and any EtherNet/IP scanner or controller.
The configuration is carried out using the Intesis MAPS software. Which allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

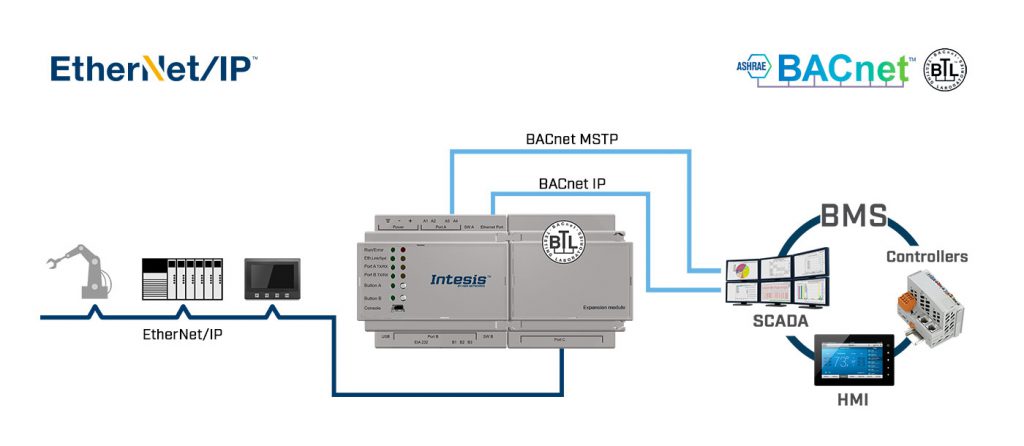

The Intesis BACnet-EtherNet/IP gateway allows you to seamlessly inter-connect PLC/BMS systems and their connected devices between BACnet IP&MSTP Control systems and EtherNet/IP networks. This gateway works as a BACnet slave/server on the BACnet side and as an EtherNet/IP adapter on the EtherNet/IP side.
BACnet Protocol Translators
Our BACnet solutions have been specially designed to allow supervision and bidirectional control of systems and equipment talking BACnet, DALI, KNX, LonWorks, M-Bus, and Modbus protocols.
On the BACnet server versions, the gateway provides server functionality to the BMS or BACnet controller over BACnet/IP through the Ethernet port and over BACnet MS/TP through the serial port.
On the BACnet client versions, the gateway provides client functionality to control BACnet IP server devices through Ethernet and BACnet MSTP devices through the serial port. In such cases, control and monitoring of BACnet devices from ASCII, KNX, and Modbus BMS controllers is possible.
- Great integration flexibility thanks to KNX TP, LonWorks, RS485, Ethernet, DALI, or M-Bus interfaces.
- Scaled licenses per number of datapoints help to find the right gateway version for your project.
- Conforms to BACnet revision 14, B-AAC Profile.
- Supports BI, BO, AI, AO, Device, BV, AV, MI, MO, MV, NC, Schedule, and Calendar BACnet objects.
- Supports subscription requests (COV).
- BTL certified.
BACnet IP and MSTP
The device can communicate through Ethernet or serial ports with BACnet IP or BACnet MSTP networks.
BBMD and foreign Devices
BACnet devices can work in complex BACnet/IP networks, providing the ability to communicate between subnets or/and through routers.
Advanced features
All Intesis BACnet Servers allow hosting notification class, calendar, schedule, and trend log objects as well as support for subscription requests (COV).
BTL certified
It provides an assurance that products have been independently tested and have passed industry-standard BACnet testing.
Product Information
- UL & BTL certified
- Support for BACnet IP or BACnet MSTP server
- BACnet Advanced features available (Trend logs, Calendars, etc.)
- EtherNet/IP adapter interface (Anybus CompactCom technology)
- Control and monitoring over EtherNet/IP based Scanners
- Easy integration & updates with Intesis MAPS
ORDER CODES:
| INBACEIP1K20000 | Gateway to connect BACnet MSTP or BACnet IP installations with EtherNet/IP networks – 1200 points |
- Intesis Gateway.
- Installation Manual.
- USB Configuration cable.
- (Power supply not included).
- Warranty: 36 months.
