Specifically designed to allow bidirectional control and monitoring of all parameters and functionalities of your building automation projects

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features. Thanks to its support for the KNX standard datapoint types (DPTs), guarantees seamless integration with any KNX device or system.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.

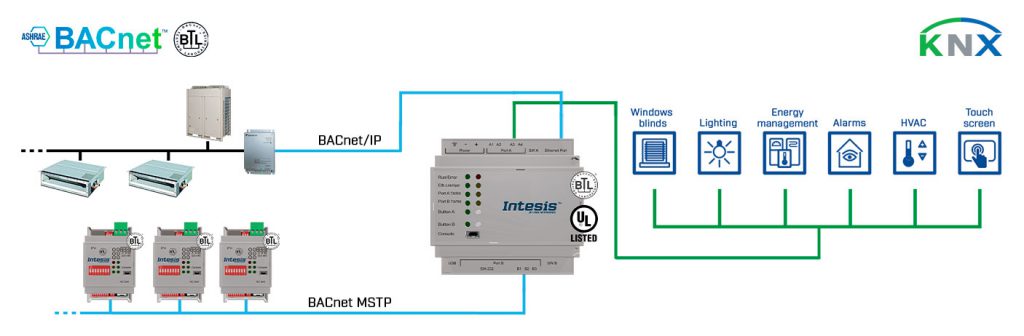

Integrate any BACnet MS/TP or BACnet IP server device, with any KNX device or system. The aim of this integration is to make accessible BACnet objects data and resources from a KNX system as if it was a part of the own KNX system and vice-versa.

BACnet Protocol Translators

Our BACnet solutions have been specially designed to allow supervision and bidirectional control of systems and equipment talking BACnet, DALI, KNX, LonWorks, M-Bus, and Modbus protocols.

On the BACnet server versions, the gateway provides server functionality to the BMS or BACnet controller over BACnet/IP through the Ethernet port and over BACnet MS/TP through the serial port.

On the BACnet client versions, the gateway provides client functionality to control BACnet IP server devices through Ethernet and BACnet MSTP devices through the serial port. In such cases, control and monitoring of BACnet devices from ASCII, KNX, and Modbus BMS controllers is possible.

  • Great integration flexibility thanks to KNX TP, LonWorks, RS485, Ethernet, DALI, or M-Bus interfaces.
  • Scaled licenses per number of datapoints help to find the right gateway version for your project.
  • Conforms to BACnet revision 14, B-AAC Profile.
  • Supports BI, BO, AI, AO, Device, BV, AV, MI, MO, MV, NC, Schedule, and Calendar BACnet objects.
  • Supports subscription requests (COV).
  • BTL certified.

KNX Protocol Translators

Provide BACnet, DALI, M-Bus, or Modbus communication to your KNX installations. Intesis KNX solutions offer a perfect integration in any KNX project thanks to the availability of multiple standard DPT (Data Point Types) and our expertise in KNX solutions.

Intesis KNX connects directly to the KNX TP-1 bus and behaves like any other device in the KNX system, with the same configuration and operational characteristics as other KNX devices.

  • Great integration flexibility thanks to KNX TP, RS485, Ethernet, DALI, or M-Bus interfaces.
  • Scaled licenses per number of datapoints help to find the right gateway version for your project.

Standard KNX Datapoint Types

It ensures interoperability and data quality between different manufacturers’ devices.

Extended group addresses

In big projects actívate extended group addresses and use up to 32 main group addresses in a 3-Level configuration.

Sending and listening addresses

Every point can be addressed not only using its main group address but also using the other defined listening addresses for the point.

Ri flag (Read on initialisation flag)

In order to get updated data as soon as possible, KNX gateways could requests updated data to the bus after initialization, instead of waiting for changes.

Product Information

  • UL Certified
  • BTL Certified
  • Support for KNX TP
  • Up to 3000 KNX communication objects
  • KNX standard Datapoint Types (DPT) available
  • Both BACnet IP and MS/TP supported
  • Possibility to scan for BACnet devices with BACnet Explorer
  • Easy integration & updates with Intesis MAPS

ORDER CODES:

INKNXBAC1000000  BACnet IP & MS/TP Client to KNX TP Gateway – 100 points
INKNXBAC2500000  BACnet IP & MS/TP Client to KNX TP Gateway – 250 points
INKNXBAC6000000  BACnet IP & MS/TP Client to KNX TP Gateway – 600 points
INKNXBAC1K20000  BACnet IP & MS/TP Client to KNX TP Gateway – 1200 points
INKNXBAC3K00000  BACnet IP & MS/TP Client to KNX TP Gateway – 3000 points
  • Intesis Gateway.
  • Installation Manual.
  • USB Configuration cable.
  • (Power supply not included).
  • Warranty: 36 months.
