A passive diagnostics solution that can be used around the clock

The EtherTAP2 is a monitoring interface that enables the in-depth analysis of PROFINET and EtherNet/IP traffic. Just like its highly popular predecessor, it acts as a bridge between your industrial network and the Anybus Osiris diagnostics platform.

However, its newly designed housing and improved functionality guarantee the early detection of communication errors and give round-the-clock access to passive diagnostics.

Upgrading the EtherTAP’s housing – which is based on the Atlas2 Plus – has turned this handy plug-and-play solution into an effective permanent monitoring solution. First, it’s designed to be permanently installed on a DIN rail. It now fits neatly side-by-side with your Atlas2 Plus. Second, it improves heat dissipation in the cabinet, reducing the risk of overheating and boosting efficiency.

Product Information

Distinctive features
• Passive diagnostics
• Cycle time per device
• Positive and negative message jitter
• Number of dropped packets
• Alarm Triggers
Application example:
• Message recording of the PROFINET and Industrial Ethernet
• Compatible with Anybus Osiris Software for passive diagnostics

• Telegram analysis on bit-level

To make tapping available make sure you have:

• A correct license
• An EtherTAP placed between two devices communicating over PROFINET
• A running measurement


W x D x H (mm): 52 x 130 x 120 (DIN-Rail clip included; plug-able connectors as amounted in installations excluded)
Weight: 440 grams (excluding plug-able connectors, and packing material)
DIN-rail: 35 x 7.5 mm (IEC/EN 60715)

Ambient conditions

Operating temperature range -20° to +60° Celsius
Storage and shipping temperature -20° to +85° Celsius
Relative air humidity Max. 98%, non-condensing
Ingress protection IP 20 (IEC/EN 60529, DIN 40 050)

 Power supply

Maximum power use Max. 2.6 W
Powered from a USB port Yes, connect the second power supply if the USB power supply is not sufficient.
Nominal power supply USB 5 VDC
Current consumption USB @5 VDC

Max. 520 mA at 10 Mbit/s (Full Traffic)

Max. 450 mA at 100 Mbit/s (Full Traffic)

Nominal power supply Secondary 12 to 24 VDC
Current consumption Secondary @12 VDC

Max. 220 mA at 10 Mbit/s (Full Traffic)

Max. 190 mA at 100 Mbit/s (Full Traffic)

Reverse polarity protection Yes
Pluggable power supply connector

Pin – : 0 V

Pin +: 12 to 24 VDC

Pin SH: Shield

Wire diameter Max. AWG 14 (max area 2.5 mm2)
Installation notes:

The device shall be powered with the correct power supply:

  • For North America, the power supply shall be listed and meet the requirements for class 2
  • For the rest of the world, the power supply shall meet the requirements for limited power sources as defined in IEC/EN 60950-1 cl. 2.5

Possible power supplies:
XP-power DNR120-480 series
Phoenix STEP-PS series

Traco power TCL series


Connector ETH1 and ETH2 RJ-45
Maximum cable length 100 m
Link speed 10/100 Mbps
Network Link Galvanically separated
Network Latency

10Mbps: max. 6600 ns

100Mbps: max. 660 ns

USB Ports

Port type USB3.0; Port type B

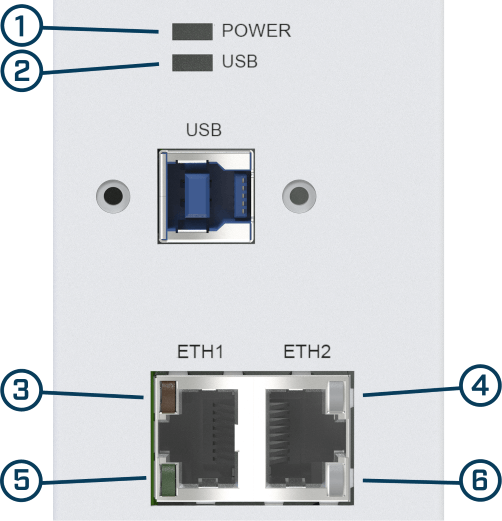

Power LED (1) On: Power Ok

Off: No USB cable connected

On: USB cable and USB power connected

Blinking: Constant synchronisation between system time and hardware timestamp.

Link/Activity LEDs (3,4)

On: The Ethernet Port is linked

Blinking: The port is linked and has RX/TX activity (traffic is passing through).

Speed LEDs (5,6)

LED5 On: Operating at 100 Mbps.

LED5 Blinking: EtherTAP is Initializing.

LED6 On: Operating at 10 Mbps.

LED6 Blinking: EtherTAP firmware corrupted.

LED5,6 Blinking: EtherTAP is not connected or trying to connect.

LED5,6 Alternate Blinking: EtherTAP cannot find a common speed between the connected devices.

System requirements

System type and Operating system

Atlas, Atlas2 Plus; Linux

PC: Dual Core Processor, 4 GB memory, USB3.0 port; Windows 7/8/10 (32-bit & 64-bit)

Standards and Approvals


EMC Directive 2014/30/EU, class A

RoHS Directive 2011/65/EU

Emission: CISPR32

Immunity: CISPR35

FCC 47 CFR 15 & ICES-003 (Issue 6), class A

Order Codes   513-20011A
Included Components

Anybus EtherTAP2: 10/100

Supplied with manual, drivers, 1 x 1m RJ/45, 1 x 1 USB
Additional Information Works with EtherTAP: PROFINET Analysis License (101-700204), Wireshark, ClearSight, OptiView, NetSpector, OmniPeak, NetDecoder, Packetyzer, Ethertest.
Warranty  1 year
