Easily integrate AC units into Home Automation systems

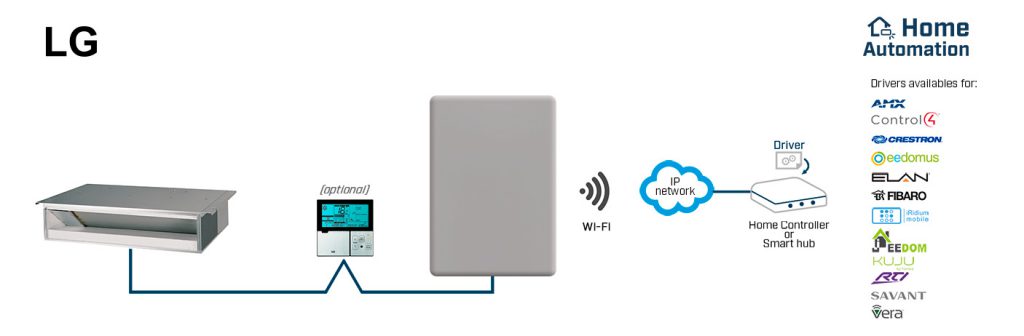

The LG-ASCII gateway allows complete and natural integration of LG VRF Air Conditioner units into IP based Home Automation Systems. The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint…but the monitoring of errors and alarms.
The Intesis Home Automation gateways have been specifically designed to be the best AC integration solution for Home Automation Systems. Communications are based on a simple ASCII protocol that can be easily implemented, in the form of a driver, into Home Controllers or Smart Hubs. With drivers already available from many Home Automation platforms on the market, Air Conditioning units can be easily integrated and controlled.
Ensure energy savings
Intesis AC gateways allow reducing considerably the energy consumption of buildings while contributing to environmental protection.
Improve user’s comfort
The goal is to reduce energy while improving the user’s comfort. With Intesis these are not mutually exclusive outcomes!
Leading with leaders
We are the indisputable market leader in AC integration thanks to having the continuous support of the major AC manufacturers.
- Intuitive web interface for the WiFi configuration.
- b/g/n WiFi standards supported.
- Quick and easy installation (plug and configure the WiFi).
- External power not required.
- Simultaneous control of the AC unit by the IR remote controller and by Home Automation systems.
- Integration with any IP Home Automation System thanks to our open ASCII protocol.
- Compatible with the drivers available on the Intesis webpage.
CT – | UJ – NV2R0 | UT – | CB – | CM – N14 | CV – | UB – (except UB – N**) | UB – N94 | UM30N14 | UM – N24 | UM – N34 | UV – | CQ – | LAN – HVP | LAN – HSV2 | LSN – HYV | LSN – HV2 | LSN – HSV2 | CA – AW* | AM – BP | MS – AW* | MA – AH* (except MA09/12AH*-NF1) | MA09/12AH*-NF1 | AMNH09/12GAF*1 | MA – AH1 (except MA09/12AH1*-NF1) | MA09/12AH1-NF1 | AMNH09/12GAF11 | G – WL | DM – RP | H – AL | PM – SP | MV – AH | CV – | UV – H | UT – H | MT09AH | MT11AH | MT06AH | MT08AH | CT09*** | CT12*** | CT18*** | CT24*** | AMNC12GTRA2 | AMNC18GTQA2 | AMNC24GTPA2 | MB – AHL | MB – AH | CB – | CM – N14 | UB – H | AMNC12GB1A2 | AMNC – GB2A2 | AMNC – GBHA2 | CS – AQ | MS – AQ | E – SQ | MS – SQ | LMN – HVT | LMN – HVT | LSN240HSV2 | LSN – HSV4 | LSN – HSV5 | LAN – HSV4 | LAN – HSV5 | LMN – HVT | LMAN – HVT | LMAN – HVP | LMDN – HV | LMDN – HV | LMHN – HVT | LCN 097 HV4 | LMCN – HV | LMVN – HV | ARNU – GSEL2 / GSEL4 | ARNU – GSJN4 | ARNU – GSKN4 | ARNU – GSVA4 | ARNU – GS5L2 / GS5L4 | ARNU – GSBL2 / GSBL4 | ARNU – GSBL4 | ARNU – GSCL2 / GSCL4 | ARNU – GSB*4 | ARNU – GSE*1 / GSE*2 | ARNU – GS8*2 | ARNU – GSF*2 | ARNU – GSF12 /GSF14 | ARNU – GTUC2 /GTUC4 | ARNU – GTLC2 | ARNU – GTRC2 | ARNU – GTRC4 | ARNU – GTQC2 / GTQC4 | ARNU – GTPC2 / GTPC4 | ARNU36GTNC2 | ARNU – GTMC2 | ARNU – GTMC4 | ARNU – GTUC2 | ARNU – GVJA2 | ARNU36GVKA2 | ARNU48GVLA2 | ARNU – GTSC4 | ARNU – GTUC4 | ARNU – GTTC2 /GTTC4 | ARNU – GVEA2 | URNU – GVJA2 | URNU – GVKA2 | URNU – GVLA2 | ARNU – GV1A4 | ARNU – GV2A4 | ARNU – GBHA2 | ARNU – GBHA4 | ARNU – GBGA2 | ARNU – GBGA4 | ARNU – GBRA2 /GBRA4 | ARNU – GB8A2 / GB8A4 | ARNU – GBRA4 | ARNU – GB8A4 | ARNU – GM1A4 | ARNU – GM2A4 | ARNU – GM3A4 | ARNU – GM4A4 | ARNU48GBRZ2 | ARNU – GBRZ2 | ARNU – GBRZ4 | ARNU – GB1G2 | ARNU – GB2G2 | ARNU – GL1G2 /GL1G4 | ARNU – GL2G2 / GL2G4 | ARNU – GL3G2 / GL3G4 | ARNU – GB3G2 / GBGA4 | ARNU – GB4G2 | ARNU – GB4G4 | ARNU – GCEA2 | ARNU – GCFA4 | ARNU – GCFA2 /GCFA4 | ARNU – GCEU2 | ARNU – GCFU4 | ARNU – GCFU2 /GCFU4 | ARNU – GQAA2 / GQAA4 | ARNU – GVEA2 /GVEA4
* The asterisks stand for any character in the asterisk’ position.
|INWMPLGE001R000||LG VRF systems to Home Automation Interface – 1 unit|
- Intesis Gateway.
- Installation Manual.
- Warranty: 36 months.
