Anybus Wireless Managed L2 Switch for Factory Automation Applications
The Anybus managed Layer 2 PoE (Power over Ethernet) switch is designed to create reliable and secure data networks in harsh industrial environments. This versatile switch is ideal for factory automation applications.
By enabling both power and data to be sent over a single Ethernet cable, the switch provides a cost-effective and easy-to-use solution for wireless access points, security cameras and, in combination with the Anybus Bolt, to connect industrial machines.
A large range of network functions
The switch is equipped with two SFP (small form-factor pluggable) slots for high-speed uplink to backbone switches and eight gigabit Ethernet ports with PoE capacity for easy data connection and power supply through the same network cable. A fiber connection can be used to enable long-distance connections or to provide reliable data communication in environments with high electromagnetic interference.

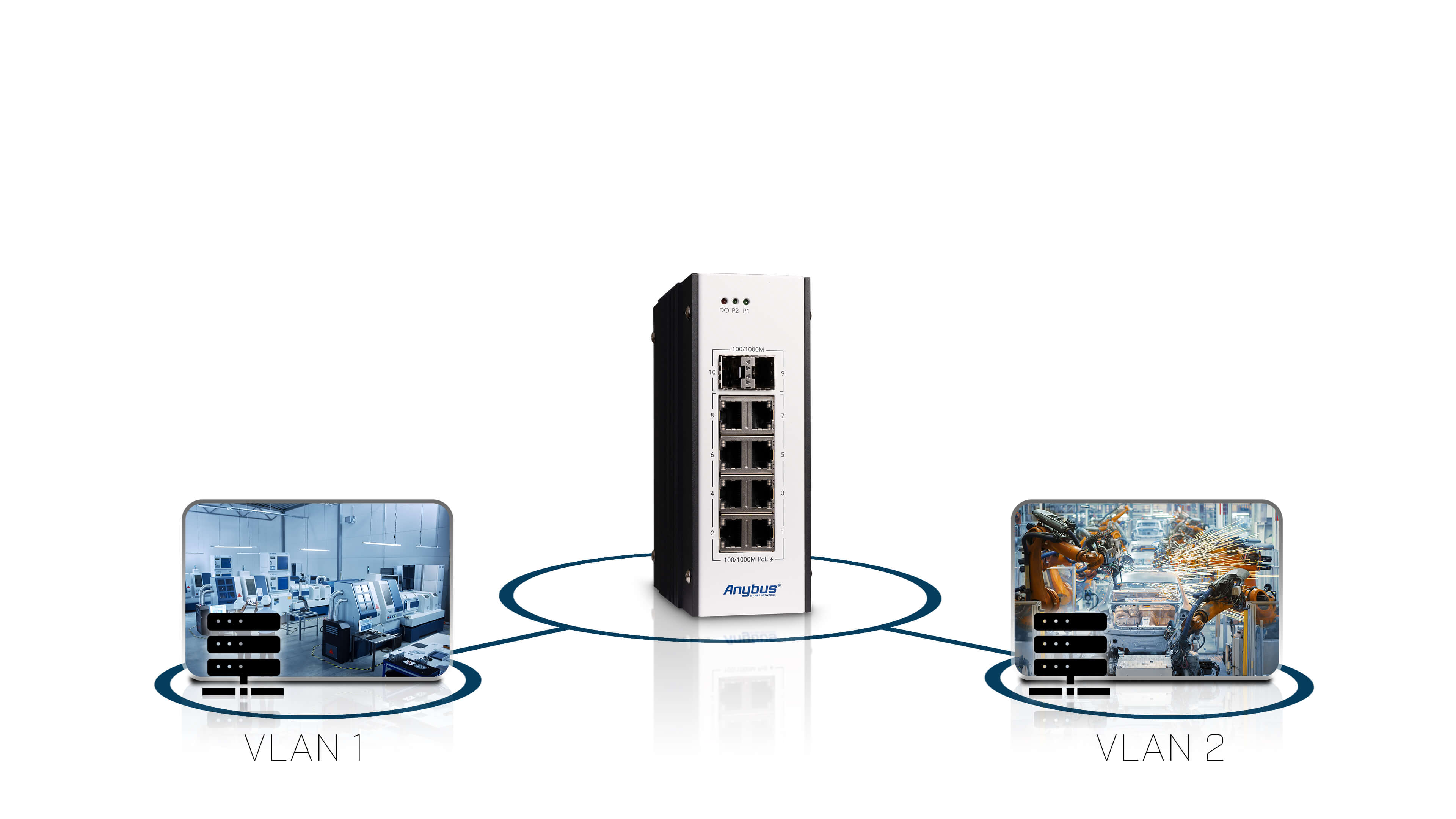

A range of network management functions make it possible to segment, control and ensure data is processed as expected. VLAN, QoS, IGMP Snooping and LACP/Trunk allow you to create extremely reliable networks suitable for critical applications. RSTP (Rapid Spanning Tree Protocol) support enables ring-configured networks for increased resilience and advanced security features, such as 802.1x port-based access control provides a high level of protection against cyber threats.
Product Information
- 802.at/af PoE+, 120 W total PoE budget, 30 W per port
- 8 x gigabit PoE RJ45 ports
- 2 x gigabit (100/1000M) SFP ports
- Non-blocking switch fabric
Layer 2 management for reliable network operation
- VLAN, QoS, IGMP Snooping, LACP/Trunk
- Rapid Spanning Tree (RSTP) for redundancy
- Configuration via GUI, CLI or SNMP
Designed for industrial applications
- DIN-rail mount
- IP31-rated all-metal housing
- Compact and robust design
Developed for harsh environments
- Dual 24VDC booster power input (12~57VDC to 54V PoE output)
- Wide temperature range, -40°C~70°C
- High-level EMC protection
| Ethernet | 8 x 10/100/1000Base-T RJ-45, PoE+ 2 x 100/1000Base SFP, DDM Store and Forward Technology with Non-Blocking Switch Fabric |
| Console | 1 x RS232 (RJ45) 115200.n.8.1 |
| Operating Temp. | -40°C-70°C , 0%-95% Non- Condensing |
| Data speeds | 1000Base-TX/FX 100Base-TX/FX 10Base-TX/FX |
| Power | 24 VDC (12-57 VDC) Max. 120W@24V~57VDC, Max.60W@12VDC support for dual power supplies |
| Weight | 985 g |
| Housing Material | Steel/aluminium |
| IP protection class | IP31 |
| Dimensions | 58 x 155 x 125 mm (without DIN rail clip) |
| Mounting | DIN rail mount (bracket included) |
| Configuration | CGI WebGUI, CLI, Telnet, SSH, SNMP |
| Security | IEEE 802.1X/RADIUS, Management IP, Management VLAN, SSL |
| Redundancy | Rapid Spanning Tree Protocol/Spanning Tree Protocol (RSTP/STP) |
| Traffic Management | Flow Control, Port Trunk/802.3ad LACP, VLAN, Private VLAN, Shared VLAN, Rate Limiters, Port Mirror, IGMP Snooping v2, Port classification, Port policing, Port scheduler, Port shaping, QoS control list, Storm policing, WRED, Port Security, ACL, Loop Protection |
| Network Management | IPv4 management, SNMP v1/v2c/v3/Trap, MIBs, LLDP, DHCP client, TFTP, System Log, NTP |
| PoE | IEEE 802.3af/at (PoE/PoE+) |
Included components:
- Switch
- 1 x DIN-rail mounting bracket
Guarantee: 3 years
