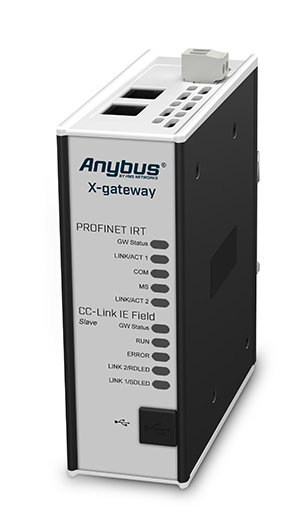

Seamlessly inter-connect/extend PLC control systems and their connected devices between a CC-Link IE Field and a PROFINET-IRT network

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Slave/Device on both networks, providing a simple network extension. The data transmission between the two networks is completely transparent with a maximum data capacity of 512 bytes in each direction.

Easy Configuration – No programming required!

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default, the X-gateways have a pre-defined I/O size of 20 bytes I/O.

Product Information

  • Fast copying of cyclic I/O data between the two networks (10-15 ms)
  • Proven and tested with all PLC manufacturers
  • Supports up to a maximum of 512 bytes of Input and Output data in each direction
  • Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
  • Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
  • Optional control status information added to I/O data for diagnostic purposes
  • Robust stand-alone housing for use in harsh industrial environments
  • Global free technical support and consultancy

CC-Link IE Field Slave settings can be made either via on-board switches, or by importing the provided .CSP file into engineering tool of the controlling PLC.

  • CC-Link IE Field interface of the X-gateway is conformance tested and approved by CLPA
  • CC-Link Specification (Profile), publication BAP-05028-B
  • Acts as a CC-Link IE Field Network Intelligent Device Station
  • Max 512 bytes Input and 512 bytes I/O data
  • On CC-Link IE Field: Max of 832 I/O points and 204 words Input and 832 I/O points and 204 words Output
  • Baudrate 1 Gbit/s fixed operation
  • TCP/IP settings configurable with web-page, Configuration Tool, DHCP or ARP
  • CC-Link IE Field station setting via on-board switches
  • 2x RJ-45 ports available simultaneously

PROFINET IRT Device/Slave settings can be made either via the built-in web interface, or by importing the provided .GSDML file into engineering tool of the controlling PLC.

  • Complete PROFINET RT and IRT functionality specification 2.3
  • Conformance tested supporting Class A, B and C
  • Max 512 bytes of Input and 512 bytes of Output data
  • Baud rate 10/100 Mbit/s Isochronous cycle times 0.25 to 4 ms (25 Us increments)
  • SNMP-MIBII support
  • TCP/IP Configuration via DCP (Discovery and Configuration Protocol)
  • LLDP (Linked Layer Discovery Protocol)
  • Support for I&M (Identification & Maintenance)
  • PROFINET uplink configuration via .GSDML file
  • Dual port cut-through switch
  • Dual RJ-45 ports available simultaneously
  • PROFINET Asset Management

Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00″
Weight 400g or 0,880 lbs
Operating temperature -25 to +65 °C  or  -13 to +149 °F
Storage temperature -40 to +85 °C  or  -40 to +185 °F
Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
Current consumption     max. 400mA (Typical 200mA)
Enclosure material  Aluminium and plastic
Installation position Vertical / Flat*
Galvanic isolation YES, on both BUS/Ethernet side
Mechanical rating IP20, NEMA rating 1
Mounting DIN-rail (EN 50022 standard)
I/O configuration via USB port with Anybus Configuration Manager software
Certifications CE, CULUSRoHS
Order Code  AB7507
Included components

Gateway
Quick start documentation
USB configuration cable

Power supply not included

Configuration and Anybus OPC server software is available for download.
