Simple way to send transparent I/O data between devices on a Modbus RTU and Modbus TCP

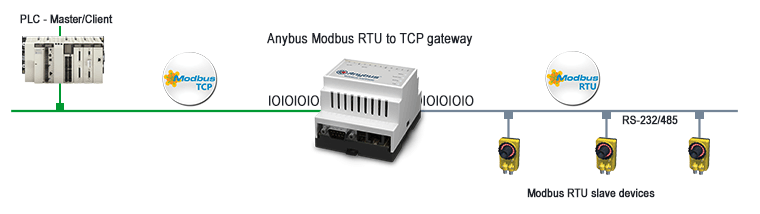

With the Anybus Modbus gateway, you can connect Modbus RTU devices to Modbus-TCP networks. The gateway works as a translator (router) between the two networks allowing up to 32 Modbus RTU devices to be connected to a Modbus-TCP network.

Transparent conversion

The gateway provides Modbus-TCP Server functionality and internally performs a completely transparent conversion between the Modbus-TCP and Modbus RTU protocols, giving users a lot of flexibility when doing system integration.

Easy web-based configuration

The configuration is easily done via the built-in web server. A self-instructive menu system will appear for device settings, diagnostics, and troubleshooting.

Product Information

  • A simple way to transmit I/O data between Modbus RTU and Modbus-TCP
  • Function as a Modbus-TCP Server routing the Modbus-TCP client queries to Modbus-RTU and back
  • Proven and trusted in thousands of Modbus applications
  • Completely transparent data transfer giving users a lot of flexibility when doing system integration
  • Serial port (RS232/RS485) and Ethernet port (10/100 Mbit)
  • Modbus RTU Master functionality connecting up to 32 Modbus RTU slaves
  • Digital inputs accessible from Modbus-TCP client
  • Very simple configuration (node address, IP-address, etc)
  • Global free technical support and consultancy

Configuration is easily done via the built-in web server. Just start a web browser and type in the IP number of the gateway (you can set the IP address of choice with Anybus IPConfig software, available to download for free under files and documentation).

From here, an easy self-instructive menu system will appear for device settings, diagnostics and troubleshooting.

Dimensions  (L•W•H) 70 x 86 x 57,7mm
Weight  50g
Operating temperature -40 to +65 °C  or  -40 to +185°F
Power supply  9–24 V DC/AC
Current consumption 70 mA@24 VDC (1.7 W)
Ethernet port 1x RJ45
RS232/485 serial connector RS-232 via D-sub 9 Male, RS-485 via screw terminal
Digital I/O Inputs  2x opto-isolated via screw terminal
Mechanical rating  IP20, NEMA rating 1
Mounting DIN-rail (EN 50022 standard)
Serial baudrate 300-115,200 bps
Ethernet baudrate  10/100 Mbit/s
Certifications  CE, UL, cUL

ORDER CODE

AB7702

Included

Quick start guide
IP address settings via Anybus IPConfig software
(Available to download under Files and Documentation)

(Power supply not included)

Guarantee 3 years
