Remote 24/7 monitoring for PROFINET, EtherNet/IP, EtherCAT and PROFIBUS

The Anybus Atlas2 Plus is a permanent monitoring tool that provides diagnostics information on your industrial network 24/7, displaying it within the intuitive software, Anybus Osiris. This allows field technicians to ensure uptime, and a healthy network and troubleshoot their network before costly downtime can occur.

Whether you are using PROFINET, EtherNet/IP or EtherCAT, you will discover that the Atlas2 Plus gives you a much more connected and predictive approach to machine health monitoring and maintenance.

This unique hardware reads industrial ethernet traffic and is single-mounted on the DIN rail in a cabinet connected to the office and factory port.

Product Information

Distinctive features

  • Remote 24/7 monitoring for PROFINET, EtherNet/IP, EtherCAT and PROFIBUS
  • Multiple versions of active and passive or active-only monitoring
  • Self-learning machine with predictive fault-finding capabilities
  • Dynamic graphical and hierarchical displays of a network’s topology
  • Scoring mechanism and traffic light alert system for simple insight
  • Optional LED display on the device itself for a quick overview

All-in-one solution

  • OPC-UA and MQTT are compatible to export diagnostic data to SCADA systems

Your benefits

  • Helps your company operate more efficiently by providing collective diagnostic oversight of installations with multiple protocols.
  • Results in faster troubleshooting and reduced downtime by processing data four times faster than its predecessor Atlas.
  • Improves your productivity by analysing data in real-time and providing immediate network overviews, no matter where in the world you are.
  • Increases the accuracy of the diagnostic process and maintains your network’s up times by learning automatically from experience.
  • Cuts the cost of maintenance by scoring your networks’ health and suggesting likely causes for common and unique faults.
  • Provides data traffic insight into your industrial network
  • Provides an intuitive interface to access data and analyze

 Application example:

  •  Any industrial network with single or mixed network architectures.

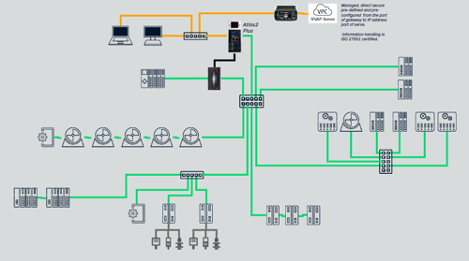

Figure 1:  An Industrial Ethernet network including an active and passive monitoring tool for 24/7 diagnostics access.


NXP IMX8 QuadMax

4 GB LPDDR4 Memory

16GB eMMC Storage Memory

Cooling Passive Cooling [fanless]
Housing Powder Coated Aluminium [improved heat dissipation]
Housing Size  52w x 130h x 110d
Mounting 1] Din Rail, 3rd party clips  2] Wall mounting optional

Optional: PM-OLED 1,45 inch, 160RGB x 128 Dots, 262 Colours

Viewing Allows: network status, and unit settings for easy troubleshooting

Power Supply 12-24 v DC
Relay Contact 24V/0.5A
USB Ports

2x USB3.0, Type A; 900 mA port

1x USB 2.0, Micro Type B; 500 mA (recovery channel only)

Licensing 1] Single Base license “Full”, with optional upgrade licenses
1] “edge” license, allowing only OPC UA / MQTT communication of data.
Active Measurements [no tap]  Yes, unlimited devices
Passive Measurements [with TAP]  Yes
TAP Communication Load Recommended 60% or below.
OPC UA [Secure] Yes
MQTT [Secure] Yes
Software updates Yes, upgrade and downgrade
Update time <10minutes
Recovery Options Yes, dual recovery partition
Order Codes   101-800341
Included Components Anybus Atlas2 Plus
Also Available Order code: 101-800311 – Atlas 2 Plus: PROFINET Permanent Monitoring Kit 100
Order code: 101-800321 – Atlas2 Plus: EtherNet/IP Permanent Monitoring Kit 100
Warranty  1 year
