Five galvanically isolated transparent repeaters (six segments)

The B5+ saves costs through the reduction of traditional PROFIBUS repeaters. This product is equipped with 5 galvanically isolated transparent repeaters on a single unit (offering 6 segments). Each segment can handle 31 devices and a cable length equal to the main bus.

To save costs on plugs and offer flexibility, it contains screw terminals as well as DB9 connectors. The DB9 connectors are also perfect measurement points for ProfiTrace to quickly measure all segments. Termination for each segment is on-board and switchable.

A reliable and robust backbone solution

For PROFIBUS network designs, the ProfiHub B5+ offers a reliable and robust backbone solution with robust message checking and selectable redundancy on communication and power supply. The extensive monitoring of messages in combination with redundancy on the communication and voltage, makes the ProfiHub the perfect access port for network components. An alarm contact is linked to events based on the status of the power supply and the bus redundancy if this is enabled. Unlimited cascading of repeaters is possible with 1200-meter spur lines.

The ProfiHub B5 is a powerful package to ensure reduced installation complexity, increased time utilisation and better deployment of project resources. The ProfiHub B5+ is used in several application areas worldwide.

Product Information

Distinctive features
• 2 Isolated repeater channels (3 segments)
• Connection speed: 9.6 Kbps .. 12 Mbps (auto detection)
• 1200 m segment length (depends on baudrate)
• 31 devices per channel
• Bus redundancy option
• Transparent for all PROFIBUS DP protocols
• Suitable for PROFIsafe and MPI
• High integrity telegram checking
• Screw terminals and DB9 connectors
• Configurable grounding system
• Integrated termination facilities

• Alarm contact

Your benefits

• Option to create a redundant path to Hubs or ComBricks
• Hot slave insertion and removal during operation
• Short circuit protection on each channel
• Compact and robust construction
• Status and error display (per channel)
• Suitable for all DP cables
• Easily extendable installations
• Cost Savings
Application examples:
• Dynamic spur lines to devices
• Star, tree and bus-structured networks
• Removable drives and motors
• Pull/Plug motor control centres

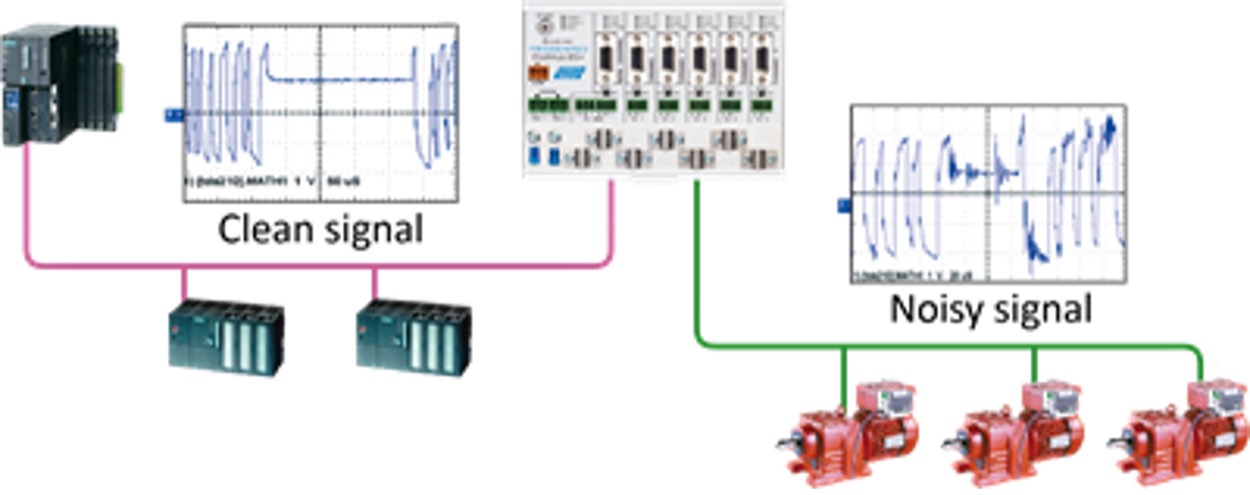

• EMC-sensitive applications

• Barrier for non-galvanic isolated equipment


ons and weight

L x H x H (mm): 167 x 113 x 35 mm (excluding DIN-rail and plug-able connectors)
Weight: 650 g (excluding plug-able connectors, cable brackets and packing material).
Mounting DIN-rail type 35mm × 7,5mm (EN 50022, BS 5584, DIN 46277-3)

Ambient conditions

Operating temperature range

-25 to +70o Celsius

-13 to +158o Fahrenheit

Isolation class IP 20 (IEC/EN 60529, DIN 40050)

Protocol specification

Supported Protocols DP-V0, DP- V1, DP-V2, FDL, MPI, FMS, PROFIsafe, PROFIdrive and any other FDL based protocol.
Transmission speed 9.6 kbps to 12 Mbps (including 45.45 kbps)
Transmission speed detection Auto detect
Transmission speed detection time  < 10 s detection and 50 s baudrate switchover time.
Transmission speed switch

Rotary switch

Auto detect

Robust repeating


Diagnostic slave








For older ProfiHubs refer to paragraph 2.10.1

Data delay time

At baudrate           Normal mode                 Robust mode

9.6 – 500 kbps               3.0 Tbit                      14 Tbit

1.5 Mbps                       4.0 Tbit                      15 Tbit

3 Mbps                          4.5 Tbit                      15 Tbit

6 Mbps                          5.0 Tbit                      16 Tbit

12 Mbps                        7.0 Tbit                      18 Tbit

Jitter per message frame

0.0625 Tbit at 9.6 Kbps – 3 Mbps

0.125   Tbit at 6 Mbps

0.25     Tbit at 12 Mbps

Deviation 2 bit times (over the complete message) for received messages is allowed and is corrected to nominal speed when transmitted.

PROFIBUS Diagnostics Device specifications

Supported Protocol DP-V0
Ident Number 6970
GSD filename PROC6970.gsd
Bus address 0-126 (software address only, set by software, default 126)
Transmission speed 9.6 kbps to 12 Mbps (including 45.45 kbps)
Transmission speed detection Auto Detect
Maximum transferrable data 85 bytes input and 5 bytes output

PROFIBUS cable specifications

Cable lengths 1200 m at 9.6 kbps to 93.75 kbps
1000 m at 187.5 kbps
400 m at 500 kbps
200 m at 1.5 Mbps
100 m at 3 Mbps to 12 Mbps
Cable thickness 10 mm (when the ground rail is used)
Wire diameter (for the screw terminals) < 2.5 mm2
Wire type Stranded or solid core
Number of devices Maximum 31 per Channel (including ProfiHubs, OLMs, Laptops/PCs, etc.)

Integrated and switchable.

Powered according to IEC 61158 (390/220/390 Ohms)

– All Channels (default on)

– Main-Channel (default off)

Redundancy Yes (Channel 4 and 5)
Cascading depth No limit (only limited by bus parameter of the master)
Cascading units

With standard bus parameters:
At baud rate        Normal mode[units]     Robust mode[units]

9.6 kbps 6                                 6                               1

19.2 kbps 6                               6                               1

45.45 kbps 39                         39                               8

93.75 kbps 6                             6                               1

187.5 kbps 6                             6                               1

500 kbps 16                            16                               3

1.5 Mbps 20                            20                               5

3 Mbps 17                               17                               5

6 Mbps   13                             13                               4

12 Mbps 13                             13                               5

 Power supply specifications

Power supply operating voltage 12 to 24 VDC
Power supply absolute max rated voltage 9 to 31 VDC
Redundant power supply Yes
Current consumption 275 mA at 24 V power supply (all Channels fully loaded)
Power dissipation Max. 2.8 W
Reverse polarity protection Yes
Wire diameter < 2.5 mm2

Alarm contact

Voltage  Max. 24 VDC
Current Max. 0.5 A

Connector Lay-out

2x Power supply POW 1 and POW 2

Plug-able screw connector, pitch 5,08 mm

Pin +  : 12 to 24 VDC

Pin –   : 0 V

Screw: Shield

Alarm Contact

Plug-able screw connector, pitch 5,08 mm

Pin 1: relay contact (potential-free)
Pin 2: relay contact (potential-free)

PROFIBUS screw terminals Main Channel and Channel 1 to 5

Plug-able screw terminal, pitch 3,81 mm

Pin A: PROFIBUS A (green wire)

Pin B: PROFIBUS B (red wire)

Pin I : Indirect shield

PROFIBUS DB9 Main Channel and Channel 1 to 5

D Sub connector, 9 contacts (PROFIBUS specification)

Pin 1: N.C.
Pin 2: N.C.
Pin 5: GND
Pin 6: VPP
Pin 7: N.C.
Pin 9: N.C.
Housing: Shield

Shield is connected internally to the DIN-rail

Pin I is connected internally with 10nF/1MOhm to shield.

Standard and approvals


EMC Directive 2014/30/EU, class B Digital Device

RoHS Directive 2011/65/EU

FCC 47 CFR 15, Unintentional Radiator, class B Digital Device.

Report reference: E365044-A1-UL

Standards for safety: UL 60950-1, Information Technology Equipment – Safety – Part 1 General Requirements

CAN/CSA C22.2 No. 60950-1-07, Information Technology Equipment – Safety – Part 1: General Requirements


Certificate number: A-13659 Location classes:

  • Temperature: D
  • Humidity: B
  • Vibration: A
  • EMC: B
  • Enclosure: IP20 (IEC/EN 60529, DIN 40050)
MTBF 398723 hours according to IEC-62380 (RDF2000/UTE C 80-180)
Order Codes   17020R
Included Components Anybus ProfiHub B5+
Warranty  1 year
