High-speed transparent internet access to remote industrial machines via an LTE (4G) network with a 3G fallback

The Anybus Wireless Bolt LTE is an industrial grade router which provides high-speed transparent internet access to remote industrial machines via an LTE (4G) network with a 3G fallback. This enables users to perform comprehensive remote monitoring and analysis targeting increased system uptime and reduced costly maintenance trips.

Rugged all-in-one solution

The robust IP66 and IP67-rated enclosure allow the Anybus Wireless Bolt LTE to be installed in the toughest of operating environments, and the wide temperature coverage (−40°C to 65°C) makes it suitable for outdoor applications.

The product can be powered through an Ethernet cable, i.e., Power over Ethernet, or via separate power terminals. Ethernet cables can be up to 100 meters long, enabling users to optimize the placement of Wireless Bolt LTE up to 100 meters from the connected industrial equipment.

As the rugged all-in-one solution can be installed in an exposed location, there is no need for an external antenna or antenna cable to the Wireless Bolt LTE. This has both financial and practical benefits, as external antennas can be expensive, fragile, and very sensitive to interference.

The Anybus Wireless Bolt LTE is packaged in an elegant and innovative form factor that blends in well, making it look like an integrated part of the installation.

Product Information

High-speed cellular internet access

  • Secure LTE Cat-4 connectivity for 4G networks with 3G fallback.

  • Fast data transfer: Download up to 100 Mbit/s, Upload up to 50 Mbit/s.

  • Nano SIM-card slot. The user can use any locally available SIM card supporting LTE 4G (LTE Cat-4).

  • Transparent transfer of any TCP/UDP based protocol, for example, MQTT and OPC UA.

All-in-one solution

  • PoE (Power over Ethernet) option, use a single cable for both power and communication.

  • Integrated dual antennas with MIMO support.

  • GNSS satellite positioning function (GPS, GLONASS, Galileo and BeiDou).

  • Built-in firewall, NAT, and DHCP server.

  • Host interface RJ45 with Ethernet.

Designed for industrial use & harsh environments

  •  Industrial internet routers are ideal for applications within automation, transportation, telematics, public safety, and industrial IoT. 
  • Unique and industrial form-factor; M50 through-hole enables it to be mounted on any flat surface.
  • Easy to use and configure – use the built-in web page or CLI with REST commands for configurations and diagnostics.
    Operating temperature

    Shadow Black and White version: -40 to 65°C 
    Direct sunlight Black: -40 to 45 °C, White: -40 to 65°C  

    Storage temperature -40 to 85 °C 
    Host interface. RJ45 Ethernet 10/100 Mbit/s, PoE (Power over Ethernet) 
    Humidity compatibility

    EN 600068-2-78: Damp heat, 40 °C, 90% (non-condensing). 

    Vibration compatibility

    Sinusoidal vibration test according to IEC 60068-2-6:2007 and with extra severities
    Number of axes: 3 mutually perpendicular (X:Y:Z)
    Duration: 10 sweep cycles in each axes
    Velocity: 1 oct/min
    Mode: in operation
    Frequency: 5-500 Hz
    Displacement ±3.5 mm
    Acceleration: 2g
    Shock test according to IEC 60068-2-27:2008 and with extra severities
    Waveshape: half sine
    Number of shocks: ±3 in each axes
    Mode: In operation, Axes ± X,Y,Z
    Acceleration: 30 m/s^2
    Duration: 11 ms. 

    Dimensions

    Diameter: 68 mm. 
    Height: 75 mm without Power connector, 84 mm incl. Power connector. 
    Height above mounting surface: 41 mm. 

    Weight

    100g

    Housing material Top: Valox 357X(f1) PBT/PC. Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C. Base: Celanex: XFR 6840 GF15. PBT glass reinforced plastic.
    Protection class

    Top (outside of host): IP66 and IP67 / UL Type 4X 
    Base (inside of host): IP21 

    Mounting M50 hole (50.5 mm hole diameter needed) 
    Power

    3-pin screw connector and PoE (Power over Ethernet)  
    11-33 VDC through Power connector, PoE, IEEE 802.3at Type 1 (Class 0)  
    Power Consumption:  
    Sleep Mode: Power connector 0.1 W. PoE 0.3 W 
    Idle Mode: Power connector 0.6 W. PoE 0.8 W 
    Worst Case average power: Power connector 3.2 W. PoE 3.6 W. 
    Worst case peak current: 1.2A@11VDC 

    Cellular standards, Bands

    EMEA: LTE B1, B3, B7, B8, B20, B28. Fallback 3G. 
    Americas: LTE B2, B4, B5, B12, B13, B14, B25, B26, B66. Fallback 3G. 

    Data speeds

    Max download speed: 100 Mbit/s 
    Max upload speed: 50 Mbit/s 

    Ethernet protocols Transparent transfer of any TCP/UDP based protocol, Built-in firewall, NAT, and DHCP server. 
    Certifications

    CE/RED, FCC, PTCRB, UL/cUL (E214107)
    Pending: Verizon, AT&T

    Positioning GNSS satellite positioning function (GPS, GLONASS, Galileo and BeiDou)
    • Provides internet access for any machine, device, or equipment that has an Ethernet port.

    • Provides satellite positioning for mobile or stationary equipment.

    Application example:

    • A rural area pump station with a PLC controller using the Anyway Wireless Bolt LTE for internet connectivity.

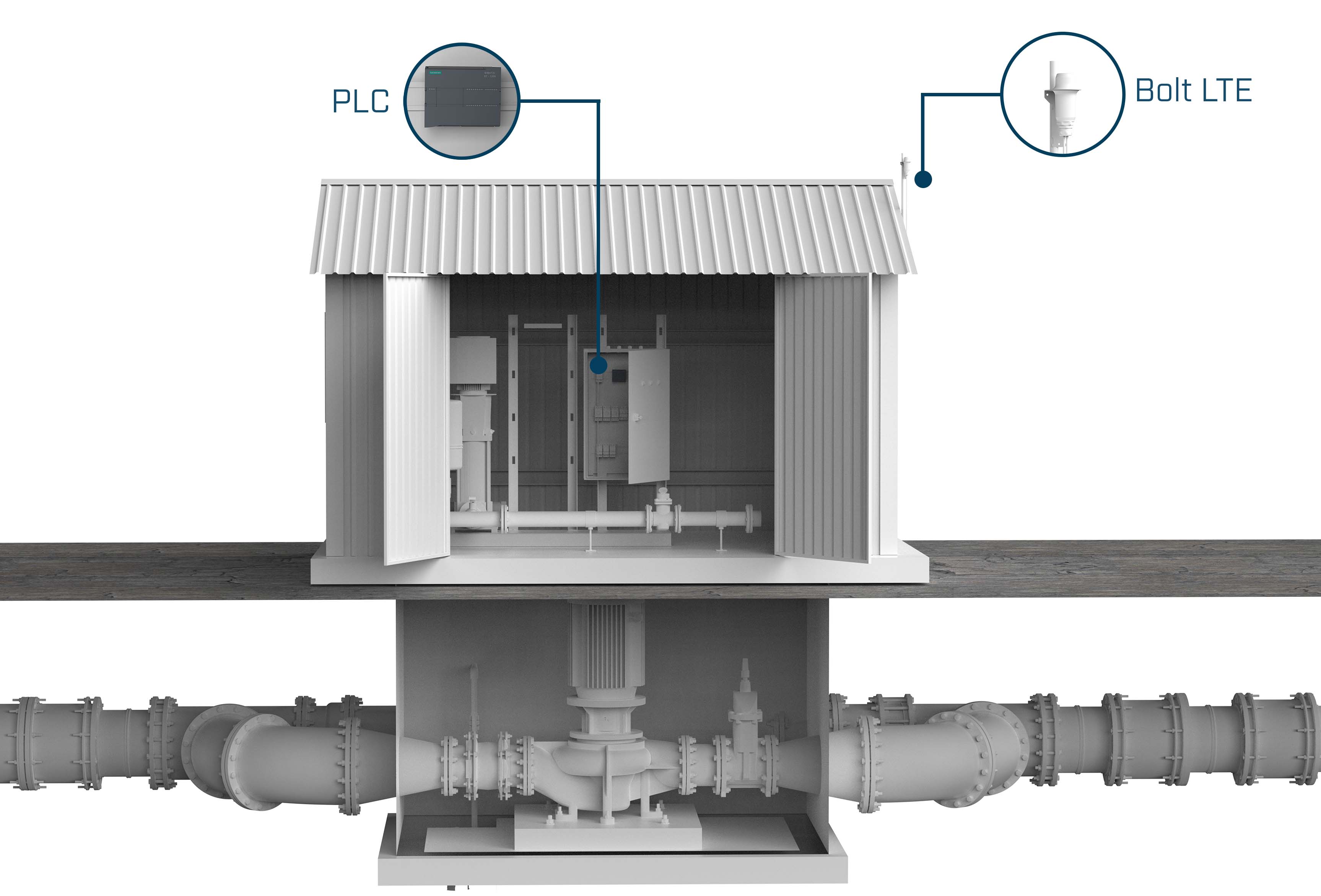

    Figure 1:  Pump station with PLC and Anybus Wireless Bolt LTE for remote monitoring and diagnostics. 

    Connectivity examples:

    • Using PoE

    The Anybus Wireless Bolt LTE supports PoE and as a result, a single Ethernet cable can be used for both power and data.

    Figure 2: The Wireless Bolt LTE using PoE and mounted using the Bolt Base Protector mounting kit

    • Using a separate power source

    Alternatively, the Wireless Bolt LTE can be connected to a separate power source and only use the Ethernet cable for data.

    Figure 3: Connecting Bolt LTE with a separate power source and Ethernet cable 

    Order Codes
    Black
    EMEA: AWB1500
    Americas: AWB1502
    Whitetop and black base
    EMEA: AWB1501
    Americas: AWB1503
    Included Components

    Anybus Wireless Bolt LTE with 3-pin power screw connector. 
    Quickstart Guide, Safety & Compliance sheet.   Global roaming SIM card (optional activation with separate charge) 

    Accessories 024707 – Power Supply 90-264 VAC to 24VDC 19W world socket kit,1.4-meter cable and 3-pole Bolt power connector.  
    024708 – Bolt base Protector.
    024709 – Bolt base Protector and Mounting Bracket kit.
    AWB4005 – Anybus PoE injector 100-240VAC. 35W incl. world power cable 
    AWB4006 – Anybus PoE injector 12-57VDC. 30W, dual PoE ports 
    Warranty 3 years
