Seamlessly inter-connect PLC control systems and their connected devices to the IIoT networks MQTT and OPC-UA

The X-gateway IIoT’s primary function is to allow the fast streaming of an industrial network into OPC-UA and MQTT. This offloads your PLC from working with additional services while providing extra security by isolated the high-risk connections away from sensitive areas.  In principle, the PLC gets its own firewall.

The connection between the two networks is quickly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway.

Product Information

  • Supports OPC-UA micro-embedded profile
  • Supports Discovery Services
  • User name and password authentication
  • Supports DataChange Subscription
  • MQTT client acting as a publisher
  • Proven and tested with PLC’s from all leading manufacturers
  • Possibility to build web pages to display and control a factory floor

OPC UA

  • Support for micro-embedded profile
  • Data direction from server to client
  • Supports Discovery Services
  • Timestamp supported via discovery server
  • User name and password authentication
  • Supports DataChange Subscription
  • Maximum 80 data point tags
  • Dual-port cut-through switch
  • Dual RJ-45 ports available simultaneously

MQTT:

  • MQTT client acting as a publisher
  • MQTT version 3.1.1 supported
  • JSON data encoding supported
  • QoS 0-2 supported
  • User name and password authentication
  • Maximum 256 data point tags
  • Dual-port cut-through switch
  • Dual RJ-45 ports available simultaneously

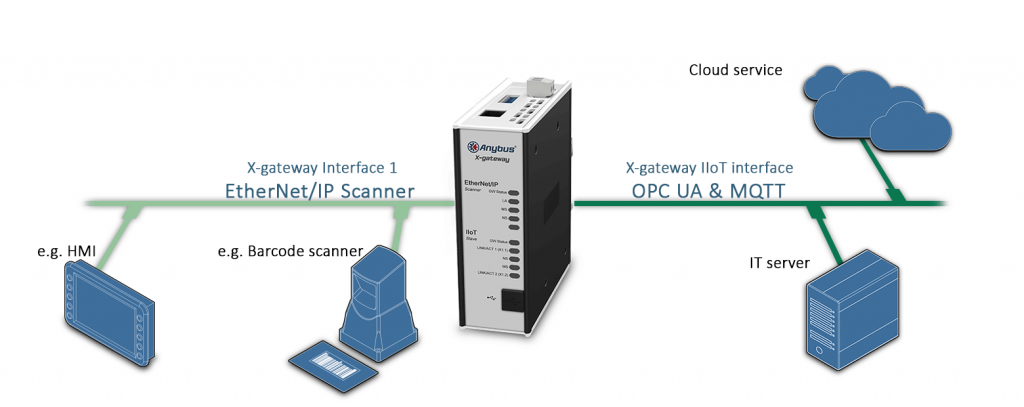

An Anybus X-gateway with an integrated EtherNet/IP Scanner interface can be used when there is no existing EtherNet/IP controlling PLC. The X-gateway will perform EtherNet/IP Scanner functions.

    • EtherNet/IP CONFORMANCE TESTED™ by ODVA
    • Connects up 64 EtherNet/IP Adapter/Slaves
    • 10/100Mbit operation in full or half-duplex
    • Max. 509 bytes Input and 505 bytes Output data
    • Optional Live List of the active status of the connected adapters
    • Integrated FTP server provides easy file management using standard FTP clients.
    • The web server with dynamic data capability and Server Side Include (SSI) capability
    • Email client with dynamic data capability and Event-triggered email handling
    • Support for CIP Objects
    • DNS Capability
    • TCP/IP settings via on-board DIP switches, DHCP/ARP/Anybus IPconfig (HICP)
    • EtherNet/IP Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software
    • 1x RJ-45 Ethernet port
    Dimensions (L•W•H)   114 x 44 x 127mm or 4,49 x 1,73 x 5,00″
    Weight 400g or 0,880 lbs
    Operating temperature -25 to +65 °C  or  -13 to +149 °F
    Storage temperature -40 to +85 °C  or  -40 to +185 °F
    Power supply 24 VDC +/- 20% via 2-pole 5.08 mm Phoenix pluggable screw connector
    Current consumption     max. 400mA (Typical 200mA)
    Enclosure material  Aluminium and plastic
    Installation position Vertical / Flat*
    Galvanic isolation YES, on both BUS/Ethernet side
    Mechanical rating IP20, NEMA rating 1
    Mounting DIN-rail (EN 50022 standard)
    I/O configuration via USB port with Anybus Configuration Manager software
    Certifications CE, CULUSRoHS

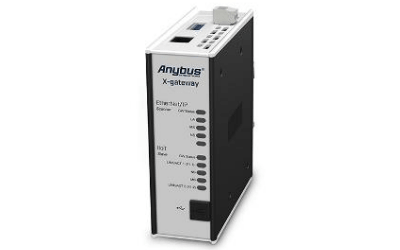

    ORDER CODE: AB7553

    INCLUDED COMPONENTS:
    – Quickstart documentation
    – USB configuration cable
    – Configuration software available for download
    – (Power supply not included)

    GUARANTEE:  3 years
