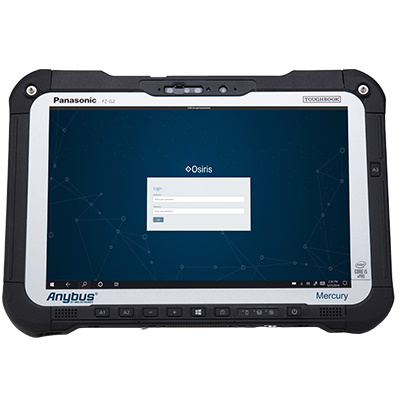

Anybus Mercury MKII

The Anybus Mercury MKII is a rugged industrial Windows tablet that uses the Osiris diagnostic software to simplify Industrial Ethernet and PROFIBUS troubleshooting, maintenance, and monitoring. The mobile tool helps you quickly identify and resolve potential faults to keep your network healthy and efficient.

Mobile Industrial Ethernet Diagnostics

When connected to an Industrial Ethernet network, the Anybus Mercury MKII generates a clear topology displaying all devices and their connections. The topology is available in different views, such as galaxy view, hierarchic tree view, or customisable view, and enables users to easily analyse the network and identify any problems using clear NAMUR NE 107 icons.

Device and alarm lists can be exported as CSV files to aid documentation and further analysis. The Quality Factor (Q-Factor) feature enables users to quickly view the network’s quality using a weighted algorithm, shown as a traffic light display.

Mobile PROFIBUS Diagnostics

For PROFIBUS networks, the Anybus Mercury MKII uses the same software as the ProfiTrace toolkits, allowing you to quickly analyse the network and identify typical failures such as voltage drops, wire breaks, and configuration faults. The built-in oscilloscope detects noise, reflections, and termination problems, while a live list continuously shows all the available devices. A network condition indicator clearly shows the health of the installation.

In summary, the Anybus Mercury MKII is a versatile, mobile tool that provides essential support to industrial technicians and engineers in maintaining network health and efficiency.

Product Information

Key features
  • Portable device with Wi-Fi and Bluetooth connections
  • Diagnostics for PROFIBUS and Industrial Ethernet networks
  • Pre-installed software enables a quick start-up.


  • Portable device with multiple connection methods.
  • User-friendly interface for easy operation
  • Pre-installed software saves time and effort
  • Ready to use immediately
  • Can be connected remotely
  • Mobility
  • Diagnostics for all your Industrial Ethernet and PROFIBUS networks in your facility
  • Comprehensive diagnostics for Industrial Ethernet and PROFIBUS networks in your facility.

Up and running in no time:

  • User-friendly interface for easy operation
  • Pre-installed software enables a quick start-up.

Perfect for the field:

  • Comprehensive diagnostics for Industrial Ethernet and PROFIBUS networks in your facility.
  • Portable device with Wi-Fi and Bluetooth connections.
  • Can be connected remotely.

Robust design

  • Designed for use in industrial environments with an IP20 rating for protection against solid objects larger than 12.5mm.
  • Withstands a wide temperature range (-25°C to 65°C) making it suitable for use in challenging environments.
Application example:

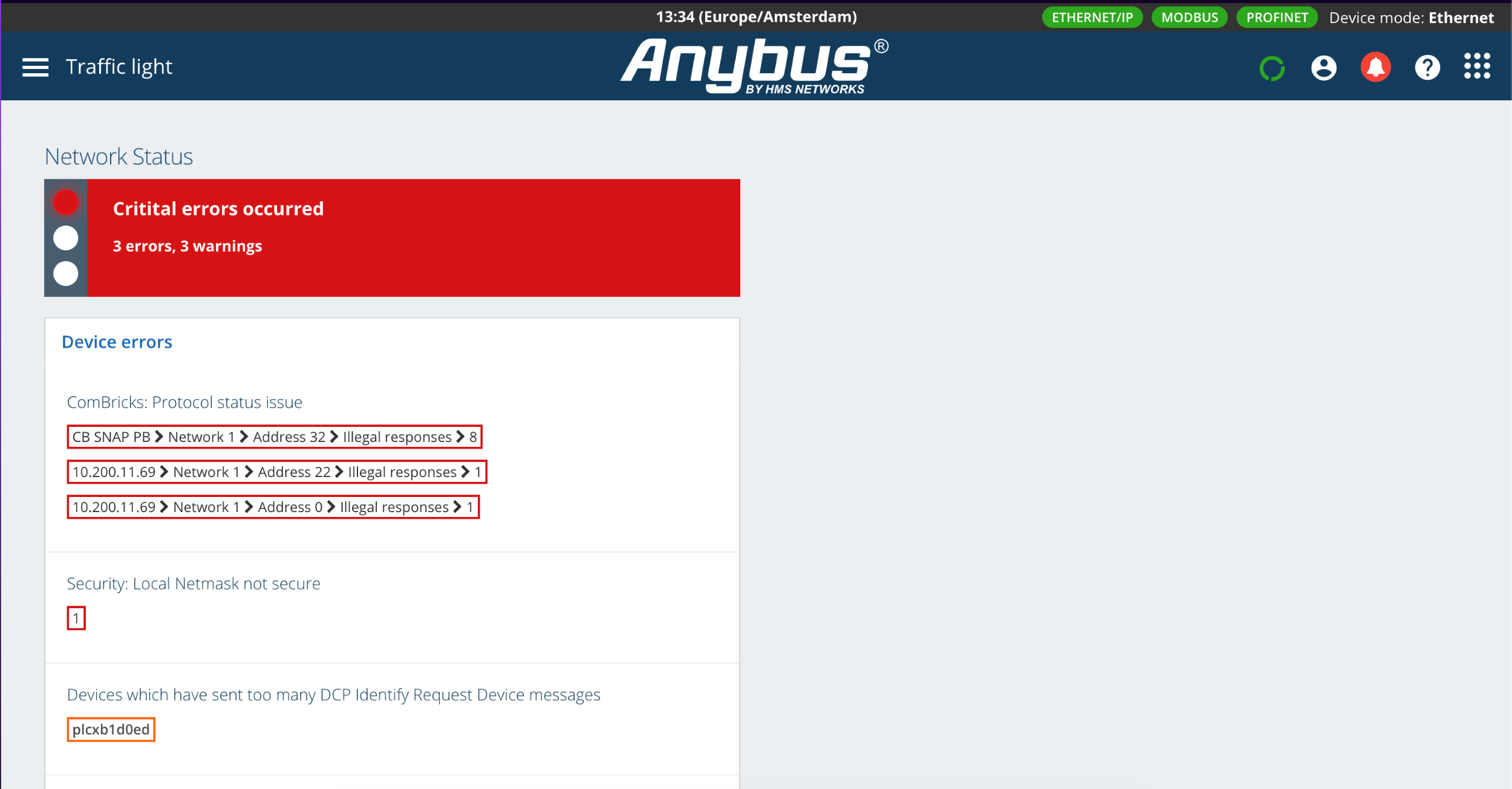

Figure 1. Traffic light network status of a network in Osiris.

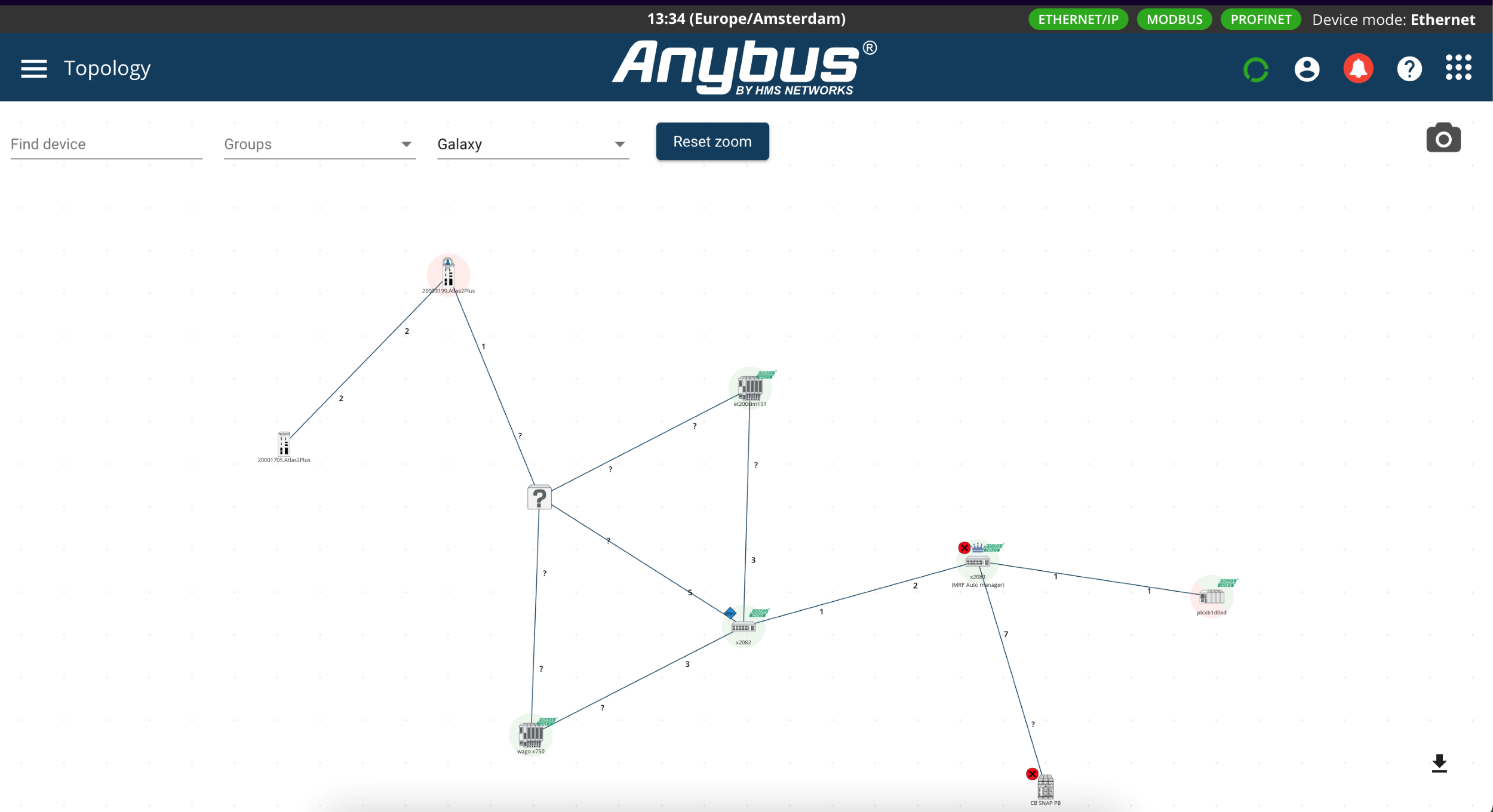

Figure 2. Topology scan of a network as shown from the Osiris software.

Industrial Ethernet

  • Topology: galaxy, tree, or customised view
  • Dynamic interactions for a complete network overview
  • Device connections with NAMUR status
  • Device information
  • Network scoring mechanism
  • Traffic light feature
  • Customisable dashboard


  • Bus monitor for DP and PA with powerful statistics
  • Oscilloscope
  • Bar graph
  • Reporting
  • Traffic light feature
    Mobile Computing Platform

    Intel® Core™ i5-10310U vPro™ Processor

    6 MB cache, 1.7 GHz up to 4.4 GHz with Intel® Turbo Boost Technology

    Operating system Windows 10 Pro
    RAM 16GB (max. 32GB) DDR4
    Storage 512GB OPAL NVMe SSD SSD (1TB optional)
    Graphic Chip Intel® UHD Graphics
    LCD 10.1″ sunlight-viewable WUXGA Active Matrix (TFT) IPSa colour LCD (up to 1000cd/m² brightness)
    Touchscreen 10-finger capacitive multi-touchscreen + digitizer with glove and rain modes
    Bluetooth™  5.1 + EDR Class 1
    Wireless LAN Intel® WI-Fi6 AX201
    Mobile Broadband * 4G LTE, supports 3G
    GPS* U-Blox NEO-M8N
    Sound Intel® High Definition Audio subsystem support, Stereo speaker

    Front: 2 MP with IR / privacy shutter (Windows Hello compliant)

    Rear: 8mpixel with autofocus and LED flash

    Configuration Port** Serial, 2D Barcode Reader, 2nd USB 2.0, 2nd LAN, Thermal by FLIR
    Rear Expansion Bay Area*** Smart Card Reader, HF-RFID (NFC) Reader

    USB 3.1: 1x

    USB 3.1 type C PD: 1x

    LAN: 1x

    DC In: 1x

    Port Replicator: 1x

    Dual Antenna Connector: 1x


    Power Management: Hot swap optional, Standby function, ACPI BIOS

    AC Adapter: Input: 100 V – 240 V AC, 50 Hz/ 60 Hz, Output: 15.6 V DC, 7.05 A

    Battery: Standard: Li-ion 11.4V, 4360mAh (50Whr), Extended (optional): Li-ion 10.8V, 6300mAh (68Whr)

    Battery Life: Standard: Approx. 12 hours (Mobile Mark™ 2014), Extended: Approx. 18.5 hours (Mobile Mark™ 2014)

    Security TPM (TCG V2.0 compliant)
    Password security (supervisor password, user password, hard disc lock)
    Integrated hardware security lock slot
    Dimensions (W x H x D) 279mm x 188mm x 23.5 mm / 11.0″ x 7.4″ x1.0″
    Weight Approx. 1.19kg / 2.64lb
    Standard Configuration FZ-G2mk1, 16GB RAM, 512GB SSD, standard battery pack, IP55 digitiser pen
    Included in the box Power Supply, Power Cord, Display cleaning cloth and User Manual

    AC Adapter: CF-AA5713A2*

    Standard battery pack: FZ-VZSU1TU

    Extended battery pack: FZ-VZSU1UU

    Emissive backlit keyboard (with x1 USB type A and x1 USB type c): FZ-VEKG21L*

    Desktop port replicator: FZ-VEBG21U

    Digitizer Stylus pen: FZ-VNP026U

    Smart Card Reader: FZ-VSCG211U

    HF-RFID (NFC) Reader

    Testing Standards****

    Water Resistance: IEC529 (JIS C0920) IPx5

    Dust Resistance: IEC529 (JIS C0920) IP6x

    **One option exclusively possible in configuration port, to be decided at purchase
    *** One option exclusively possible in rear expansion bay area, available as accessory
    **** Test by an independent third party lab following MIL-STD810H and IP65 (scheduled 2H 2021).

    Order Codes   101-827220
    Included Components 1x Anybus Mercury MKII Tablet; 1x Osiris Standard License (101-700100)
    Warranty  1 year
